Deuterium Lamps

Deuterium Lamps available for Spectrometers including background correction in AAS, UV-Vis, HPLC Instruments, Liquid Chromatography Detectors and other equipment designed for the need of the light source in the ultraviolet waveband. Deuterium Lamps are a broad band source of ultraviolet light, they are filled with deuterium gas and provide continuous UV spectrum from 170 - 400 nm. We provide D2 lamps pre-aligned as direct replacement for OEM or bare lamp versions for customers to secure to existing flange or securing fixture.

Please see our Deuterium Lamp Compatibility List.

D001 - Agilent

D002 - Beckman

D003 - Shimadzu

D004 - GBC Scientific

D005 - Hitachi

D006 - Thermo Fisher

D007 - Cecil

D007L - Cecil Long Nose

D008 - GBC Scientific

D009 - Varian

D010 - Unicam Solar

D011 - Beckman Altex

D012 - Jasco

D013 - Perkin Elmer

D014 - Thermo Fisher

D015 - Hitachi

D016 - IBM Beckman

D017 - Bausch & Lomb

D018 - Varian

D019 - Agilent HP

D020 - See Through

D021 - Thermawave

D022 - Perkin Elmer Lambda

D023 - Shanghai Instuments

D024 - Waters

D025 - Perkin Elmer

D026 - Perkin Elmer

D027 - Spectra Physics

D028 - Thermo Fisher Solar M5 / M6

D029 - Unico

D030 - YL Instrument

D031 - Camag

• <

  >

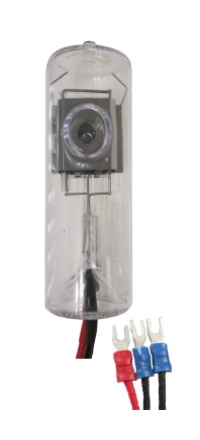

  D001 - Agilent

  Heater voltage: 2.5 V

  Ignition voltage: >350 V

  Operating voltage: 65-90 Vdc

  Operating current: 300 mAdc

  Envelope diameter: 28.5 +/- 1.0 mm

  Light aperture: 1.0 mm

  Spectral distribution: 180-400 nm

  Connector: spade terminals

  Note: bare lamp
• <

  >


  D002 - Beckman

  Heater voltage: 10 V

  Ignition voltage: >350 V

  Operating voltage: 65-90 Vdc

  Operating current: 300 mAdc

  Envelope diameter: 30 +/- 0.5 mm

  Light aperture: 1.0 mm

  Spectral distribution: 180-400 nm

  Connector: spade terminals

  Note: bare lamp
• <

  >


  D003 - Shimadzu

  Heater voltage: 2.5 V

  Ignition voltage: >350 V

  Operating voltage: 65-90 Vdc

  Operating current: 300 mAdc

  Envelope diameter: 28.5 +/- 1.0 mm

  Light aperture: 1.0 mm

  Spectral distribution: 180-400 nm

  Connector: 8 pin base

  Note: pre-aligned octal base
• <

  >

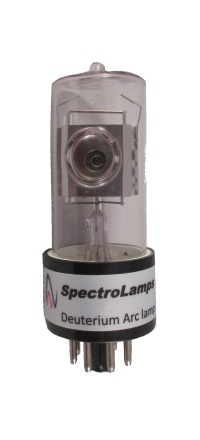

  D004 - GBC Scientific

  Heater voltage: 10 V

  Ignition voltage: >350 V

  Operating voltage: 65-90 Vdc

  Operating current: 300 mAdc

  Envelope diameter: 28.5 +/- 1.0 mm

  Light aperture: 1.0 mm

  Spectral distribution: 180-400 nm

  Connector: 8 pin base

  Note: pre-aligned octal base
• <

  >

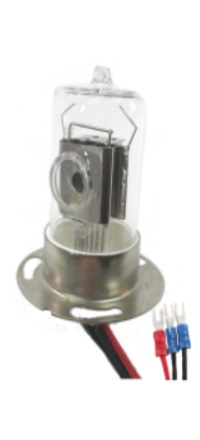

  D005 - Hitachi

  Heater voltage: 10 V

  Ignition voltage: >350 V

  Operating voltage: 65-90 Vdc

  Operating current: 300 mAdc

  Envelope diameter: 28.5 +/- 1.0 mm

  Light aperture: 1.0 mm

  Spectral distribution: 180-400 nm

  Connector: spade terminals

  Note: pre-aligned
• <

  >

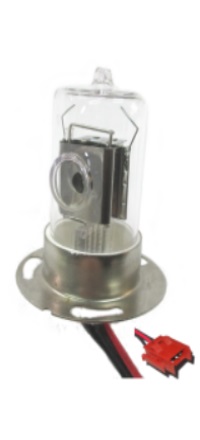

  D006 - Thermo Fisher

  Heater voltage: 10 V

  Ignition voltage: >350 V

  Operating voltage: 65-90 Vdc

  Operating current: 300 mAdc

  Envelope diameter: 28.5 +/- 1.0 mm

  Light aperture: 1.0 mm

  Spectral distribution: 180-400 nm

  Connector: 3 way housing

  Note: pre-aligned
• <

  >

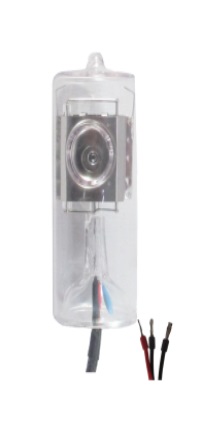

  D007 - Cecil

  Heater voltage: 10 V

  Ignition voltage: >350 V

  Operating voltage: 65-90 Vdc

  Operating current: 300 mAdc

  Envelope diameter: 28.5 +/- 1.0 mm or 30 +/- 0.5 mm

  Light aperture: 1.0 mm

  Spectral distribution: 180-400 nm

  Connector: tinned ends

  Note: bare lamp
• <

  >

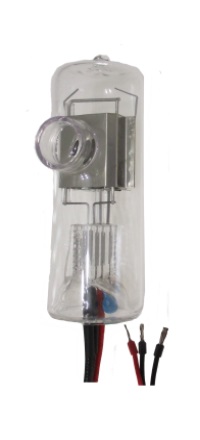

  D007L - Cecil Long Nose

  Heater voltage: 10 V

  Ignition voltage: >350 V

  Operating voltage: 65-90 Vdc

  Operating current: 300 mAdc

  Envelope diameter: 28.5 +/- 1.0 mm or 30 +/- 0.5 mm

  Light aperture: 1.0 mm

  Spectral distribution: 180-400 nm

  Connector: tinned ends

  Note: bare lamp Long Nose version
• <

  >

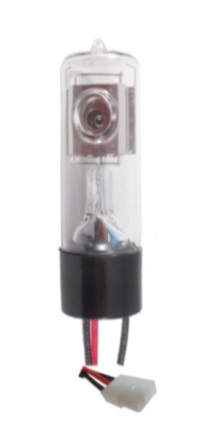

  D008 - GBC Scientific

  Heater voltage: 10 V

  Ignition voltage: >350 V

  Operating voltage: 65-90 Vdc

  Operating current: 300 mAdc

  Envelope diameter: 28.5 +/- 1.0 mm

  Light aperture: 1.0 mm

  Spectral distribution: 180-400 nm

  Connector: 3 way housing

  Note: bare lamp
• <

  >

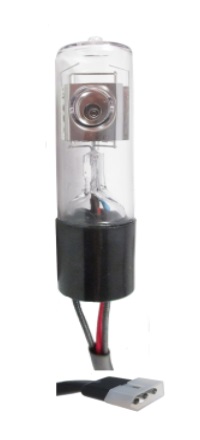

  D009 - Varian

  Heater voltage: 10 V

  Ignition voltage: >350 V

  Operating voltage: 65-90 Vdc

  Operating current: 300 mAdc

  Envelope diameter: 28.5 +/- 1.0 mm

  Light aperture: 1.0 mm

  Spectral distribution: 180-400 nm

  Connector: 3 way housing

  Note: bare lamp
• <

  >

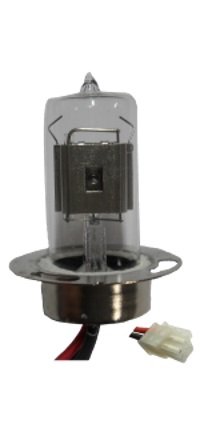

  D010 - Unicam Solar

  Heater voltage: 2.5 V

  Ignition voltage: >350 V

  Operating voltage: 65-90 Vdc

  Operating current: 300 mAdc

  Envelope diameter: 28.5 +/- 1.0 mm

  Light aperture: 1.0 mm

  Spectral distribution: 180-400 nm

  Connector: 4 way housing

  Note: pre-aligned
• <

  >

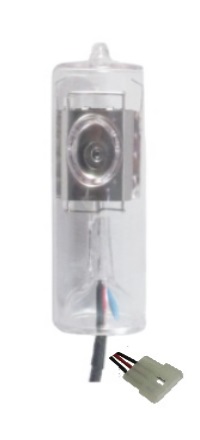

  D011 - Beckman Altex

  Heater voltage: 10 V

  Ignition voltage: >350 V

  Operating voltage: 65-90 Vdc

  Operating current: 300 mAdc

  Envelope diameter: 28.5 +/- 1.0 mm

  Light aperture: 1.0 mm

  Spectral distribution: 180-400 nm

  Connector: 4 way housing

  Note: bare lamp
• <

  >

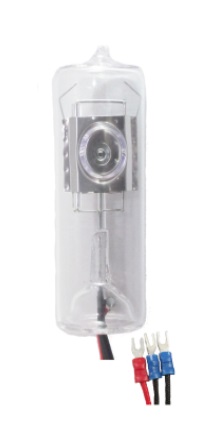

  D012 - Jasco

  Heater voltage: 10 V

  Ignition voltage: >350 V

  Operating voltage: 65-90 Vdc

  Operating current: 300 mAdc

  Envelope diameter: 30 +/- 0.5 mm

  Light aperture: 1.0 mm

  Spectral distribution: 180-400 nm

  Connector: spade terminals

  Note: bare lamp
• <

  >

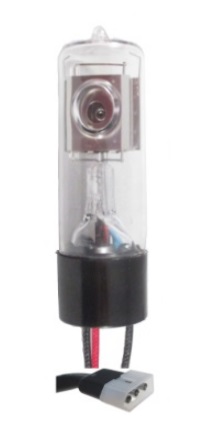

  D013 - Perkin Elmer

  Heater voltage: 10 V

  Ignition voltage: >350 V

  Operating voltage: 65-90 Vdc

  Operating current: 300 mAdc

  Envelope diameter: 28.5 +/- 1.0 mm

  Light aperture: 1.0 mm

  Spectral distribution: 180-400 nm

  Connector: 3 way housing

  Note: bare lamp
• <

  >

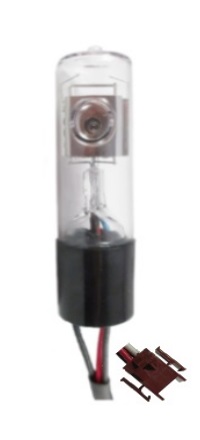

  D014 - Thermo Fisher

  Heater voltage: 2.5 V

  Ignition voltage: >350 V

  Operating voltage: 65-90 Vdc

  Operating current: 300 mAdc

  Envelope diameter: 28.5 +/- 1.0 mm

  Light aperture: 1.0 mm

  Spectral distribution: 180-400 nm

  Connector: 4 way housing

  Note: bare lamp
• <

  >

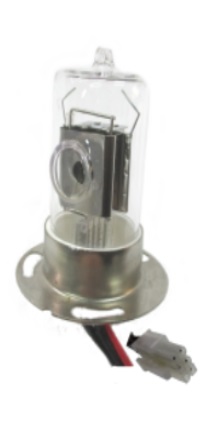

  D015 - Hitachi

  Heater voltage: 10 V

  Ignition voltage: >350 V

  Operating voltage: 65-90 Vdc

  Operating current: 300 mAdc

  Envelope diameter: 28.5 +/- 1.0 mm

  Light aperture: 1.0 mm

  Spectral distribution: 180-400 nm

  Connector: 6 way housing

  Note: pre-aligned
• <

  >

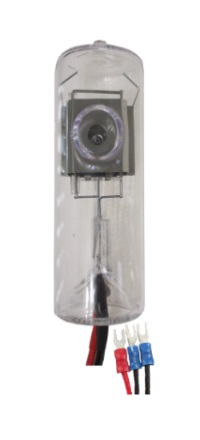

  D016 - IBM Beckman

  Heater voltage: 2.5 V

  Ignition voltage: >350 V

  Operating voltage: 65-90 Vdc

  Operating current: 300 mAdc

  Envelope diameter: 30 +/- 0.5 mm

  Light aperture: 1.0 mm

  Spectral distribution: 180-400 nm

  Connector: spade terminals

  Note: bare lamp
• <

  >

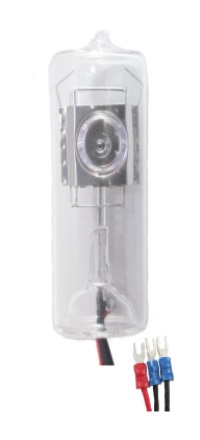

  D017 - Bausch & Lomb

  Heater voltage: 2.5 V

  Ignition voltage: >350 V

  Operating voltage: 65-90 Vdc

  Operating current: 300 mAdc

  Envelope diameter: 30 +/- 0.5 mm

  Light aperture: 1.0 mm

  Spectral distribution: 180-400 nm

  Connector: spade terminals

  Note: bare lamp
• <

  >

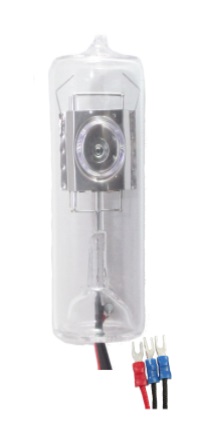

  D018 - Varian

  Heater voltage: 2.5 V

  Ignition voltage: >350 V

  Operating voltage: 65-90 Vdc

  Operating current: 300 mAdc

  Envelope diameter: 28.5 +/- 1.0 mm

  Light aperture: 1.0 mm

  Spectral distribution: 180-400 nm

  Connector: spade terminals

  Note: bare lamp
• <

  >

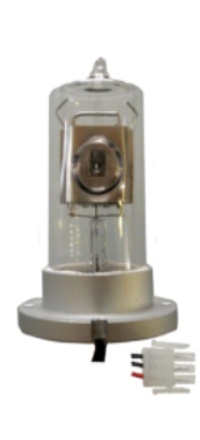

  D019 - Agilent HP

  Heater voltage: 2.5 V

  Ignition voltage: >350 V

  Operating voltage: 65-90 Vdc

  Operating current: 300 mAdc

  Envelope diameter: 28.5 +/- 1.0 mm

  Light aperture: 1.0 mm

  Spectral distribution: 180-400 nm

  Connector: 3 way housing

  Note: pre-aligned
• <

  >

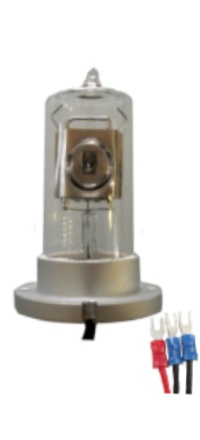

  D020 - See Through

  Heater voltage: 2.5 V or 10 V

  Ignition voltage: >350 V

  Operating voltage: 65-90 Vdc

  Operating current: 300 mAdc

  Envelope diameter: 28.5 +/- 1.0 mm

  Light aperture: 1.0 mm

  Spectral distribution: 180-400 nm

  Connector:

  Note: pre-aligned
• <

  >

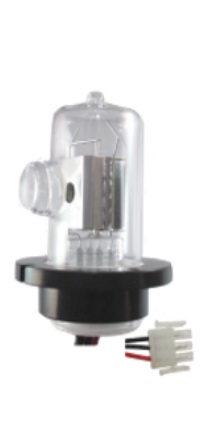

  D021 - Thermawave

  Heater voltage: 10 V

  Ignition voltage: >350 V

  Operating voltage: 65-90 Vdc

  Operating current: 300 mAdc

  Envelope diameter: 28.5 +/- 1.0 mm

  Light aperture: 1.0 mm

  Spectral distribution: 180-400 nm

  Connector: 3 way housing

  Note: pre-aligned
• <

  >

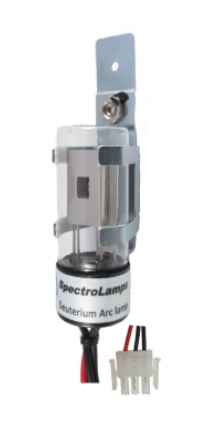

  D022 - Perkin Elmer Lambda

  Heater voltage: 10 V

  Ignition voltage: >350 V

  Operating voltage: 65-90 Vdc

  Operating current: 300 mAdc

  Envelope diameter: 28.5 +/- 1.0 mm

  Light aperture: 1.0 mm

  Spectral distribution: 180-400 nm

  Connector: 3 way housing

  Note: pre-aligned
• <

  >

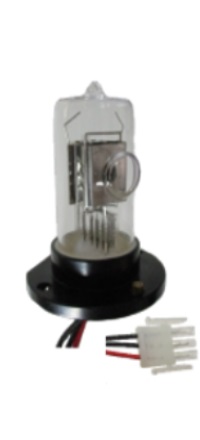

  D023 - Shanghai Instuments

  Heater voltage: 10 V

  Ignition voltage: >350 V

  Operating voltage: 65-90 Vdc

  Operating current: 300 mAdc

  Envelope diameter: 28.5 +/- 1.0 mm

  Light aperture: 1.0 mm

  Spectral distribution: 180-400 nm

  Connector: 3 way housing

  Note: pre-aligned
• <

  >

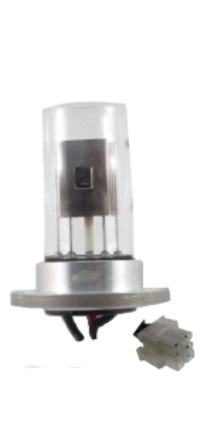

  D024 - Waters

  Heater voltage: 10 V

  Ignition voltage: >350 V

  Operating voltage: 65-90 Vdc

  Operating current: 300 mAdc

  Envelope diameter: 28.5 +/- 1.0 mm

  Light aperture: 1.0 mm

  Spectral distribution: 180-400 nm

  Connector: 6 way housing

  Note: pre-aligned
• <

  >

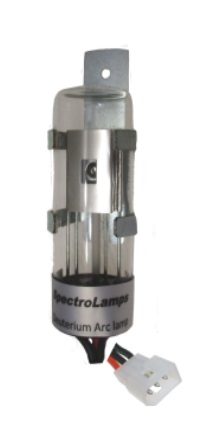

  D025 - Perkin Elmer

  Heater voltage: 2.5 V

  Ignition voltage: >350 V

  Operating voltage: 65-90 Vdc

  Operating current: 300 mAdc

  Envelope diameter: 28.5 +/- 1.0 mm

  Light aperture: 1.0 mm

  Spectral distribution: 180-400 nm

  Connector: 3 way housing

  Note: pre-aligned
• <

  >

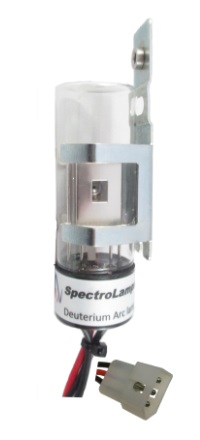

  D026 - Perkin Elmer

  Heater voltage: 2.5 V

  Ignition voltage: >350 V

  Operating voltage: 65-90 Vdc

  Operating current: 300 mAdc

  Envelope diameter: 28.5 +/- 1.0 mm

  Light aperture: 1.0 mm

  Spectral distribution: 180-400 nm

  Connector: 3 way housing

  Note: pre-aligned
• <

  >

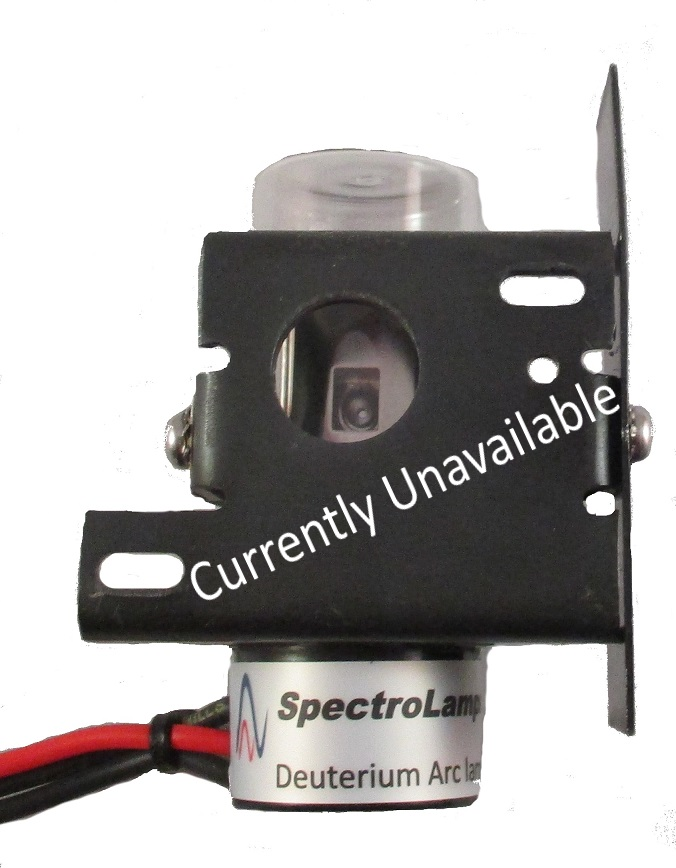

  D027 - Spectra Physics

  Heater voltage: 10 V

  Ignition voltage: >350 V

  Operating voltage: 65-90 Vdc

  Operating current: 300 mAdc

  Envelope diameter: 28.5 +/- 1.0 mm

  Light aperture: 1.0 mm

  Spectral distribution: 180-400 nm

  Connector: 3 way housing

  Note: pre-aligned
• <

  >

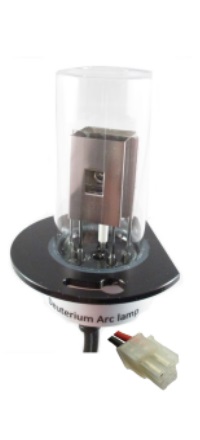

  D028 - Thermo Fisher Solar M5 / M6

  Heater voltage: 2.5 V

  Ignition voltage: >350 V

  Operating voltage: 65-90 Vdc

  Operating current: 300 mAdc

  Envelope diameter: 28.5 +/- 1.0 mm

  Light aperture: 1.0 mm

  Spectral distribution: 180-400 nm

  Connector: 4 way housing

  Note: pre-aligned
• <

  >

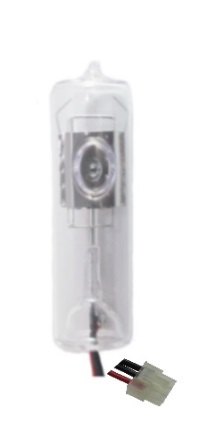

  D029 - Unico

  Heater voltage: 2.5 V

  Ignition voltage: >350 V

  Operating voltage: 65-90 Vdc

  Operating current: 300 mAdc

  Envelope diameter: 28.5 +/- 1.0 mm

  Light aperture: 1.0 mm

  Spectral distribution: 180-400 nm

  Connector: 6 way housing

  Note: bare lamp
• <

  >

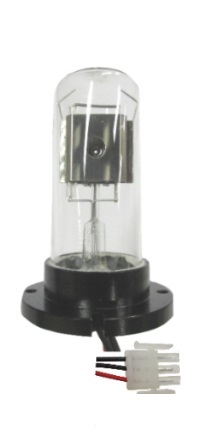

  D030 - YL Instrument

  Heater voltage: 10 V

  Ignition voltage: >350 V

  Operating voltage: 65-90 Vdc

  Operating current: 300 mAdc

  Envelope diameter: 28.5 +/- 1.0 mm

  Light aperture: 1.0 mm

  Spectral distribution: 180-400 nm

  Connector: 3 way housing

  Note: pre-aligned see-through lamp
• <

  >

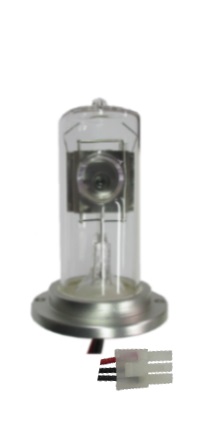

  D031 - Camag

  Heater voltage: 2.5 V

  Ignition voltage: >350 V

  Operating voltage: 65-90 Vdc

  Operating current: 300 mAdc

  Envelope diameter: 28.5 +/- 1.0 mm

  Light aperture: 1.0 mm

  Spectral distribution: 180-400 nm

  Connector: 3 way housing

  Note: pre-aligned

Images may differ to actual product in some cases.

For warranty information WARRANTY



PRICING



D001    $305 AUD



D002    $305 AUD



DO03    $390 AUD



D004    $400 AUD







D005    $410 AUD



D006    $410 AUD



D007    $305 AUD



D007L  $390 AUD









D008    $400 AUD



D009    $410 AUD



D010    $430 AUD



D011    $320 AUD









D012    $320 AUD



D013    $420 AUD



D014    $380 AUD



D015    $410 AUD









D016    $305 AUD



D017    $305 AUD



D018    $305 AUD



D019    $470 AUD









D020    $630 AUD



D021    $470 AUD



D022    $440 AUD



D023    $410 AUD









D024    $540 AUD



D025    $430 AUD



D026    $430 AUD



D027    N/A









D028    $470 AUD



D029    $335 AUD



D030    $430 AUD



D031    $430 AUD



Prices (ex GST)
